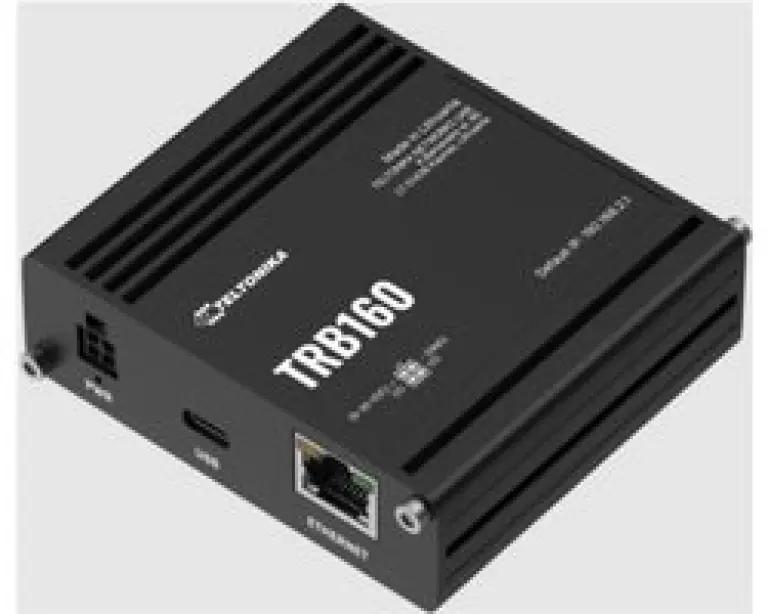

Teltonika TRB160 4G LTE Cat6 IoT-Gateway

TRB160
4G LTE CAT 6 IoT GATEWAY
De TRB160 is een ultrakleine, lichtgewicht en energiezuinige IoT-gateway die is uitgerust met bedrijfskritische LTE Cat 6, Gigabit Ethernet en een virtuele netwerkinterface via USB Type-C voor gelijktijdige voeding en levering van netwerkgegevens. Deze IoT gateway kan cellulaire snelheden bereiken tot 300 Mbps met carrier aggregatie in een breed scala aan toepassingen en ondersteunt een breed scala aan industriële protocollen voor M2M communicatie.

• Mobile module

  4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

• 3GPP Release

  Release 12

• Status

  Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

• SMS

  SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

  Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list

  Operator black/white list (by country or separate operators)

• Multiple PDN

  Possibility to use different PDNs for multiple network access and services

• Band management

  Band lock, Used band status display

• SIM PIN code management

  SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN

  Auto APN

• Bridge

  Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

  Router assigns its mobile WAN IP address to another device on LAN

• ETH

  1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules, TTL target customisation

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Ports management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• DHCP

  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• DNS over HTTPS

  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network backup

  Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

  Balance Internet traffic over multiple WAN connections

• Hotspot

  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• SSHFS

  Possibility to mount remote file system via SSH protocol

• Traffic Management

  Real-time monitoring, wireless signal charts, traffic usage history

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

  Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• Mobile quota control

  Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of TCP, UDP, ICMP packets, MAC address filter

• SSL certificate generation

  Let's Encrypt and SCEP certificate generation methods

• OpenVPN

  Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

  BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

  XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

  GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

  Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

• SSTP

  SSTP client instance support

• ZeroTier

  ZeroTier VPN client support

• WireGuard

  WireGuard VPN client and server support

• Tinc

  Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

• Supported modes

  Client, Server (planned)

• Supported connection types

  TCP

• Supported modes

  Server, Client

• Supported connection types

  TCP

• Custom registers

  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

• Supported data formats

  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
